Packer Element For CCUS/CO2 wells

CNPC USA has developed a series of packer element compounds specifically for CCUS and CO2 wells. The elastomer packer elements have been manufactured at commercial scale by CNPC USA quality-controlled compounding and molding processes.

Testing Image 11

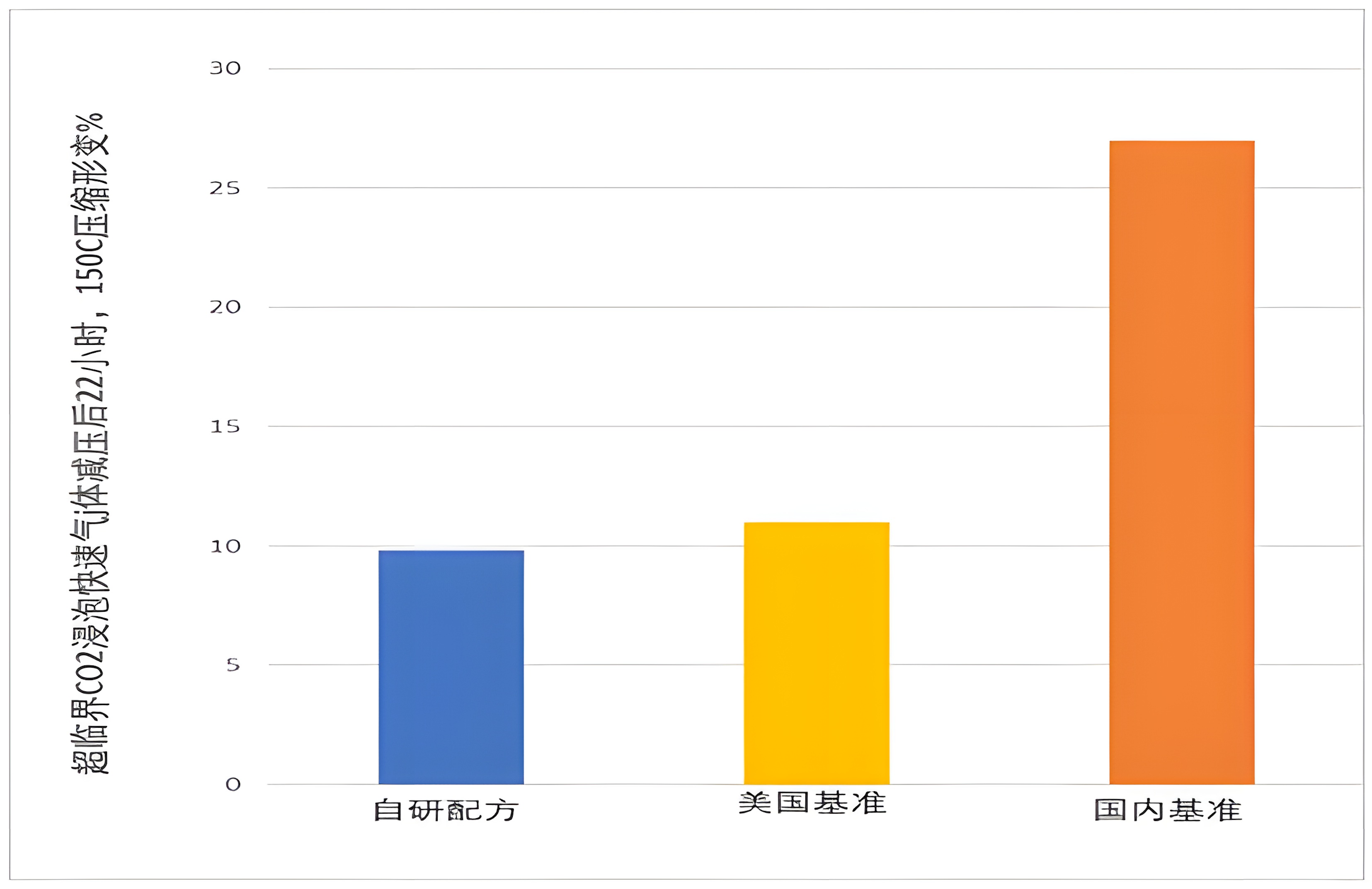

150℃ compression set results of CNPC USA compound(left), US market product(mid), Chinese market product(right) after 70hr & 100℃ CO2 immersion and 720 psi/min RGD testing.

Applications

  • Designed specifically for packer elements in CCUS storage and CO2-EOR injection Wells.
  • Zone isolation during alternate injection of brine and CO2.

Features & Benefits

  • CNPC-USA specially designed formulations and quality-controlled compounding and molding processes.
  • Superior, reliable, and long-lasting sealing performance.
  • Resistance to rapid gas decompression (RGD) at 720 psi/min.
  • Low temperature sealing performance close to -40℃.
  • 20 + reliable setting and unsetting cycles under150°C and 35Mpa pressure differential.
  • Based the side-by-side testing in comparison with the materials from three major North America element suppliers, CNPC-USA CCUS packer element compound is significantly better in
  • 1) CO2 compatibility (lowest change in weight, volume and hardness)
  • 2) Sealing performance after long-term CO2 immersion and RGD (lowest compression set)
  • 3) Structural integrity after long-term CO2 immersion and RGD (least structural damage)
  • 4) Low temperature sealing limit (glass transition temperature close to -40 ℃)
  • Cross sections of CNPC USA compound(left), US market product(mid), Chinese market product(right) after 70hr & 100℃ CO2 immersion and 720 psi/min RGD testing
