High Strength Water Swellable Rubber
CNPC USA developed proprietary swellable rubber with high strength. A short length, small OD, multi-segment swellable packer was designed and manufactured. Our swellable packer has higher pressure rating per length than the commercial swellable packers in the market that can greatly reduce the run-in risk and provide stable isolations in downhole. The swellable rubber could have many applications in Oil and gas applications.

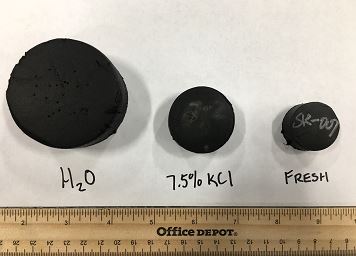

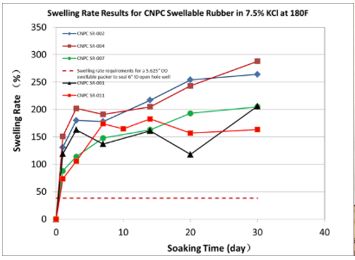

Left: Swelling rate of swellable rubber in 7.5% KCl at 180°F. Right: swelling rubber in fresh water and 7.5% KCl at 250°F
Applications
- Open hole and cased hole swellable packers
- Long-term isolation
- Effective reservoir compartmentalization
- Inflow control device completions
- Straddle assemblies
- Gravel-pack assemblies
- Multistage matrix acidizing
- Loss circulation control
Features and Benefits
- High tensile strength
- High sealing force (Hardness of the swellbale rubber is 50% higher than that in the market
- Temperature rating up to 300°F
- Engineered delay mechanism can be applied
- Wide adaptability of swell fluid from 0-10% salinity
Specifications
| Properties | CNPC-USA SR-007 #1 | CNPC-USA SR-007 #2 | CNPC-USA SR-011 | Typical Swellable Rubber | Improvement (%) |
|---|---|---|---|---|---|
| Tensile strenght (psi) | 1077 | 1072 | 1084 | 200-500 | 100-450 |
| Tensile Elongation (%) | 262 | 208 | 125 | 150 | 60 |
| Hardness fresh（Shore A） | 98 | 95 | 98 | 75 | 30 |
| Hardness in 7.5%KCl at 180°F (Shore A) | 51 | 53 | 56 | 35 | 50 |
| 90% full swelling rate, in 7.5%KCl， at 180°F（days） | 10 | 15 | 8 | 20 | 40 |
