Silver Arrow™ - Dissolvable Frac Plug
The Silver Arrow™ dissolvable frac plug is used for zonal isolation in multi-stage vertical and horizontal Plug and Perf completions. The plug is rated to 10,000 psi and utilizes patented design and proprietary dissolvable rubber and metal. This eliminates the risk and cost associated with conventional plug removal.
Application
- Zonal isolation during multistage stimulation
- Vertical, deviated, or horizontal wellbores
Features & Benefits
- Temperature Range: Wide range from 122°F to 275°F.
- Qualified: Fully tested by independent third-party facilities.
- Pump Rates: High pump rates allowed due to compact, robust design.

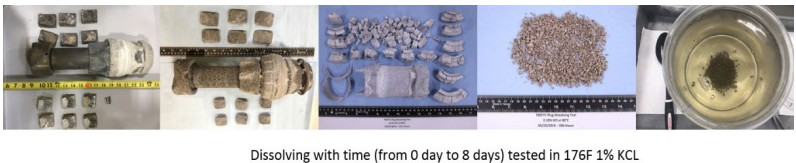

- Residue: Rubber dissolves into powder instead of jelly.
- Well Cleanup: Large ID assists immediate flowback.
- Standards: Manufactured and tested per API standards.
Technical Specifications
| Casing Size Inch (mm) | Casing Weight lb/ft | OD inch (mm) | ID inch (mm) | Length inch (mm) | Pressure PSI (MPa) | Temperature °F |
|---|---|---|---|---|---|---|
| 4.5 (114.3) | 13.5 | 3.50 (89) | 1.5 (38) | 8 (200) | 10,000 (69) | Low: 122~176 Med: 176~250 High: 250~300 |
| 5 (127) | 18 | 3.74 (95) | 1.5 (38) | 9.1 (231) | 10,000 (69) | |
| 5 (127) | 21.4 | 3.66 (93) | 1.38 (35) | 14.5 (368) | 10,000 (69) | |
| 5.5 (139.7) | 26.8 | 3.86 (98) | 1.2 (30) | 16.8 (427) | 10,000 (69) | |
| 5.5 (139.7) | 17-23 | 4.38 (111) | 1.5 (38) | 14 (356) | 10,000 (69) |
