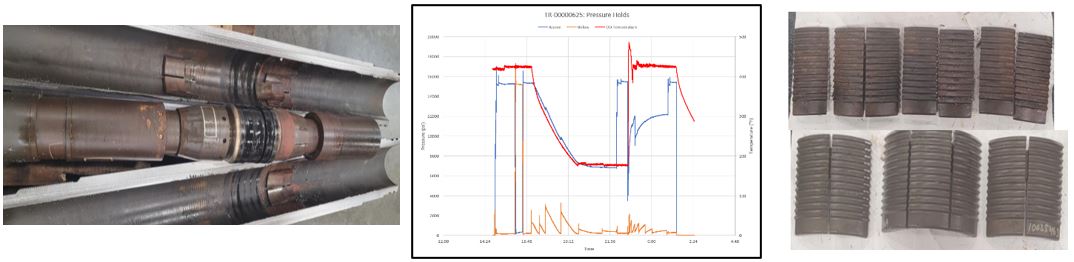

Guardpro™ - Permanent Production Packer
The permanent packer is designed to permanently isolate different zones within the well to maximize production and minimize downtime. Tested up to 15,000 psi per ISO 14310 standards, it utilizes a hydraulically set segmented slip design to reduce casing stress while providing reliable isolation.
Application
- Zone isolation for maximum production
- Vertical, deviated, or horizontal wellbores
- H2S compatible environments
Features & Benefits
- ISO 14310 V0 Qualified
- HPHT applications (up to 400°F, 15k psi)
- Segmented slip design for reduced casing stress
- Adjustable anti-preset feature
- Large ID to maximize flow
Specifications
| Casing Size Inch (mm) |
Casing Weight (lb/ft) |
OD inch (mm) |
ID inch (mm) |
Length inch (mm) |
Pressure PSI (MPa) |
Temperature (°F) |
|---|---|---|---|---|---|---|
| 5-1/2 (139) | 26 | 4.25 (108) | 2.200 (55.9) | 103 (2616) | 15,000 (103) | 400°F |
| 7 (177.8) | 32-35 | 5.75 (146) | 3.375 (85.7) | 110 (2796.3) | 10,000 (68.9) | 350°F |
| 7-5/8 (193.7) | 33.7 | 6.378 (162) | 3.386 (86) | 104 (2650) | 15,000 (103) | 400°F |
