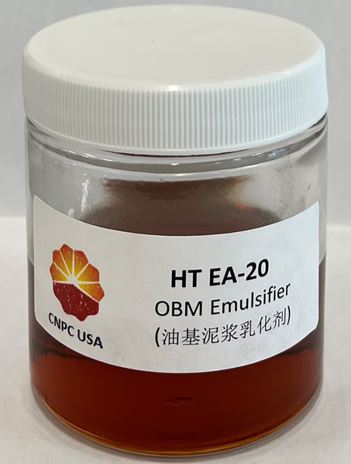

HT EA20 - Ultra HT OBM Emulsifier
HT EA20 is an ultra-high temperature tolerance emulsifier specifically engineered for non-aqueous drilling fluids. This patented high-performance chemical system is designed to maintain exceptional stability in extreme downhole environments reaching temperatures up to **225°C**.
Key Advantages
- Aids in stable rheology properties, especially for low-end RPM
- Superior electrical stability ($ES > 600V$) before (BHR) and after hot rolling (AHR) at 225°C+
- Very stable emulsion for water-in-oil systems
- Chemical thermal stability up to 225°C or higher
- Easy and safe handling for use and transportation
Typical Properties
- • Appearance: Amber Liquid
- • Specific Density: 0.95 – 0.98 g/cm³
- • Product Activity: 60% – 100%
- • Viscosity: < 2500 cp
- • Flash Point: > 100 °F (38 °C)
- • Pour Point: < 20 °F (-29 °C)
Applications & Recommended Treatment
- Extreme Environments: Specifically used for downhole temperatures of 225°C or higher.
- Fluid Compatibility: Formulated for non-aqueous fluids including diesel, white oil, and synthetic-based systems.
- Dosage: Recommended formulation of 1% to 3% based on the oil-and-water ratio.
- Proven Reliability: Successfully applied in field operations since 2016.
Packaging & Storage
- Available in 265 Gal (900 Kg) totes (IBCs) or 55 Gal (180 Kg) drums.
- Store in original containers with closed lids in a dry, cool, and well-ventilated place.
