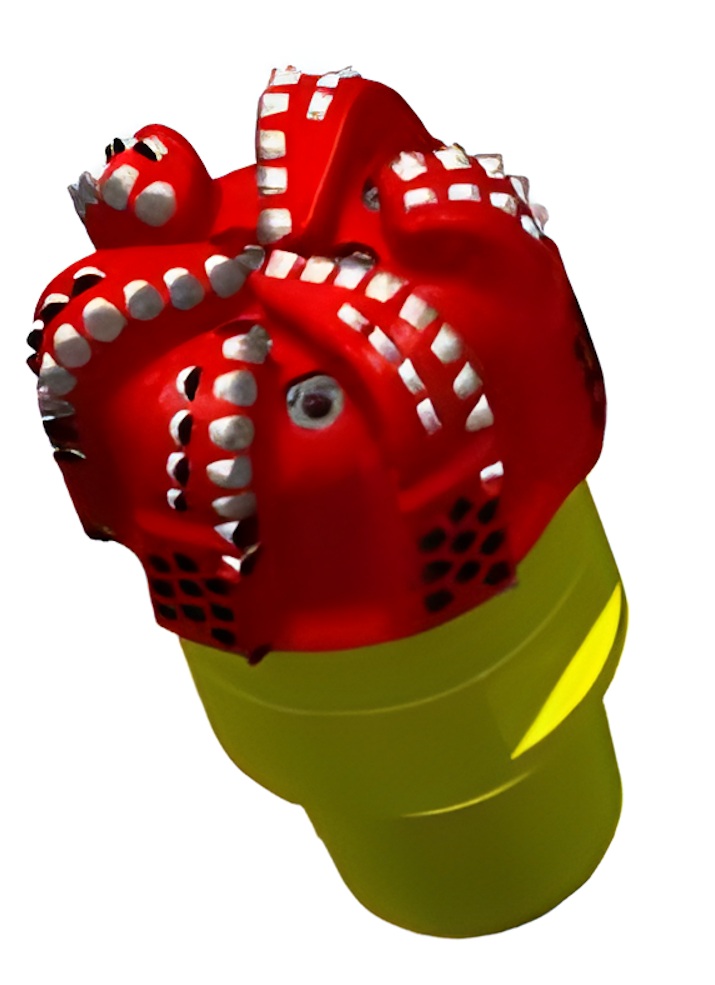

TriDon™ - MV516CALXU Drillbit
TriDon™ drill bits are custom designed and equipped with application specific cutters to maximize efficiency while drill highly heterogeneous formation.
8 1/2” 215.9mm
IADC Code: M433
Operating Parameters
- Rotary Speed : For all rotary and motor applications
- Flowrate Min-Max : 250 - 750GPM (0.95 - 2.84m³/min)
- Max Weight On Bit : 38000 lbs (16903N)
- Makeup Torque : 12500- 19500 Ft-Lbs (16948– 26438Nm)
- T - Tridon cutters are optimized geometry cutters to build up ROP and durability in tough applications
- A - Cutters engineered to last on abrasive application
- U - Up-drill Cutters placed in key locations to reduce issues while tripping out
- L - Inserts engineered to absorb and transfer forces to increase drilling efficiency
Operating parameters shown are typical for the bit type specified. For recommendations on your specific applica-tion, contact your CNPC USA representative.
feature and Benefits
Specifications
| Cutter Size (mm) | Total Cutter Count | Connection | Nozzle 1 Qty/Type | Junk Slot Area (inch²) | Gage Pad Length (inch) | Make Up Length (inch) | Shank Diameter (inch) |
|---|---|---|---|---|---|---|---|
| 13 | 81 | 4-1/2" API REG | 6-N55 Series | 13.9 | 3 | 11 | 5.9 |
| Cutter Back Up (mm) | Face Cutter Count | Nozzle 2 Qty/Type | |||||
| - | 57 | - |
