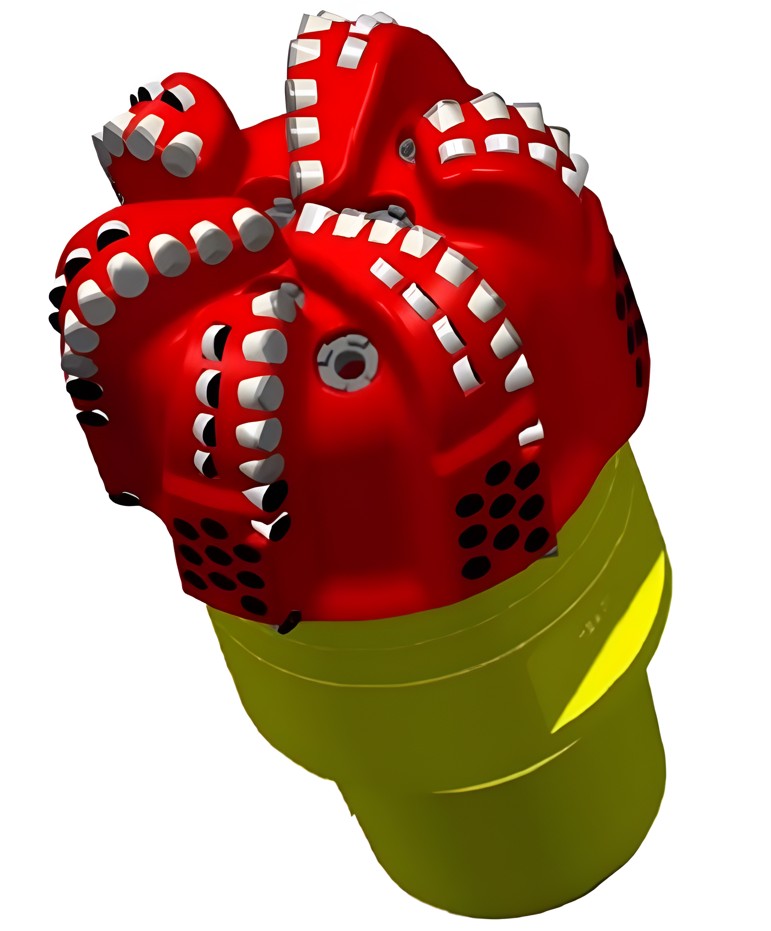

TriDon™ - 9 1/2” MV616CAXU Drillbit
TriDon™ drill bits are custom designed and equipped with application-specific cutters to maximize efficiency while drilling highly heterogeneous formations.
Size: 9 1/2” (241.3 mm)
IADC Code: M423
Operating Parameters
- Rotary Speed: For all rotary and motor applications
- Flowrate: 350 – 900 GPM (1.32 – 3.41 m³/min)
- Max WOB: 38,000 lbs (16,903 N)
- Makeup Torque: 37,600 – 40,800 Ft-Lbs (50,979 – 55,317 Nm)
Features & Benefits (CAUL)
- C: Crocodon™ optimized geometry cutters for ROP and durability
- A: Cutters engineered for abrasive applications
- U: Up-drill Cutters placed to reduce issues during tripping
- L: Inserts engineered to absorb/transfer forces for efficiency
*Operating parameters shown are typical. For recommendations on your specific application, contact your CNPC USA representative.
Technical Specifications
| Cutter Data | Connection | Nozzles | Hydraulics | |
|---|---|---|---|---|
| Primary Size | 16 mm | 6-5/8" API REG | 6-N55 Series | Junk Slot Area |
| Total / Face Count | 77 Total / 59 Face | 13.8 in² | ||
| Gage Pad Length | Make Up Length | Shank Diameter | Additional Info | |
| 3" | 12" | 7.6" | — | |
