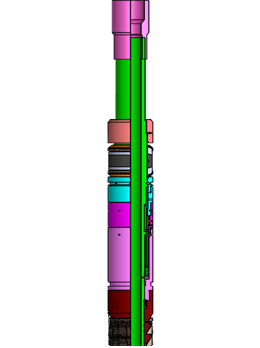

GUARDPRO™ - HPHT RETRIEVABLE PRODUCTION PACKER

The retrievable packer is designed to temporarily or permanently isolate different zones in HPHT environments to maximize well performance. The packer utilizes a barrel slip design along with a 3 piece element which is capable of withstanding 400F at 15k psi and is available in both a NACE and non-NACE version which have been qualified per ISO 14310 V0 requirements. Using a dual piston design, the packer is hydraulically set with minimal setting load required. With a patent pending cut to release feature the packer can easily and quickly be retrieved when no longer needed.

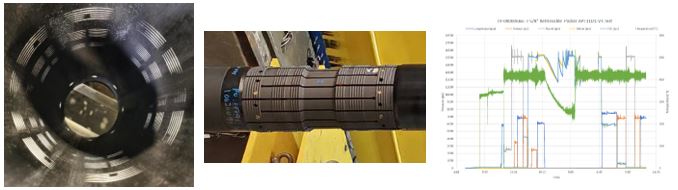

completep3

Application

  • Zone isolation to maximize well production
  • Vertical, deviated or horizontal wellbores
    • feature and Benefits

      • ISO 14310 V0 Qualified
      • HPHT applications
      • Cut to release feature allows for quick and reliable retrieving
      • Proven 360° Barrel Slip design reduces casing stress
      • Anti-preset feature ensures reliability during run-in and is adjustable to fit almost any application
      • When coupled with an optional Anchor Latch, the upper string can be removed while the packer stays in place for future use.
      • Designed, manufactured, assembled and tested per API standard

      Specifications

      Casing Size
      Inch
      (mm)
      Casing Weight
      lb/ft
      OD
      inch
      (mm)
      ID
      inch
      mm
      Length
      inch
      mm
      Pressure PSI
      (MPa)
      Temperature °F
      7-5/8
      (193.7)
      42.8 6.18
      (157)
      2.91
      (74)
      123
      (3124)
      15,000
      (103)
      400°F
      7
      (177.8)
      32-35 5.67
      (144)
      2.913
      (74)
      115
      (2930.6)
      13,000
      (90)
      400°F
      7
      (177.8)
      32-35 5.75
      (146)
      2.913
      (74)
      115
      (2930.6)
      15,000
      (103)
      400°F
