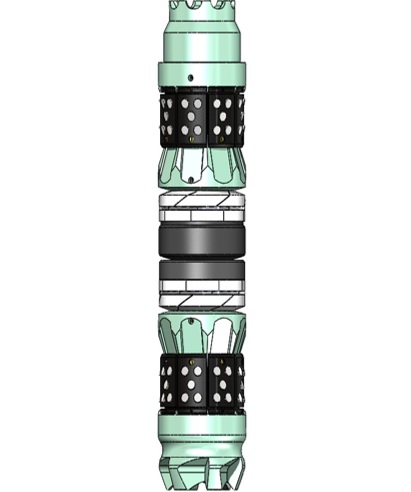

Silver Arrow™ - Composite Frac Plug
The Silver Arrow™ full composite bridge plug is engineered from proprietary high-strength materials, featuring a robust bidirectional slip structure. The high-strength carbon fiber body and ceramic buttons ensure solid anchoring and outstanding millability in HPHT environments.
Features & Benefits
- Extreme Ratings: Up to 375°F (190°C) and 15,000 PSI (104 MPa).
- Superior Anchoring: Sets securely in L80, P110, Q125, TP140, and higher grade casing.
- Optimized Flow: Large ID assists immediate flowback and efficient well cleanup.
- Millability: Anti-spinning feature enhances ease of removal.
- Versatility: Options for both up-hole and downhole pressure holding.
Applications
- Zonal isolation during multistage hydraulic fracturing.
- Compatible with vertical, deviated, or horizontal wellbores.
- Suitable for high pump rate operations due to robust design.
- Plug milling consulting services available upon request.
Technical Specifications
| Casing Size Inch (mm) |
Casing Weight lb/ft |
OD inch (mm) |
ID inch (mm) |
Length inch (mm) |
Pressure PSI (MPa) |
Temperature |
|---|---|---|---|---|---|---|
| 3.5 (88.9) | 9.2-10.2 | 2.63 (67.0) | 0.43 (11.0) | 15.6 (396.0) | 12,000 (83.0) | 375°F (190°C) |
| 4.5 (114.3) | 11.6-13.5 | 3.54 (89.9) | 1.0 (25.0) | 19.3 (490.0) | 12,000 (83.0) | |
| 5.0 (127.0) | 11.5-13.0 | 4.0 (102.0) | 1.38 (35.0) | 14.5 (368.0) | 12,000 (83.0) | |
| 5.5 (139.7) | 23.0-26.8 | 4.1 (104.0) | 1.5 (38.0) | 16.8 (427.0) | 15,000 (104.0) | |
| 5.5 (139.7) | 17.0-20.0 | 4.38 (111.0) | 1.65 (42.0) | 16.8 (427.0) | 12,000 (83.0) | |
| 7.0 (177.8) | 29.0-32.0 | 5.7 (145.0) | 2.55 (65.0) | 21.4 (544.0) | 12,000 (83.0) |
Designed, manufactured, assembled, and tested per API standards.
