UltraSense™ Bit Intelligence

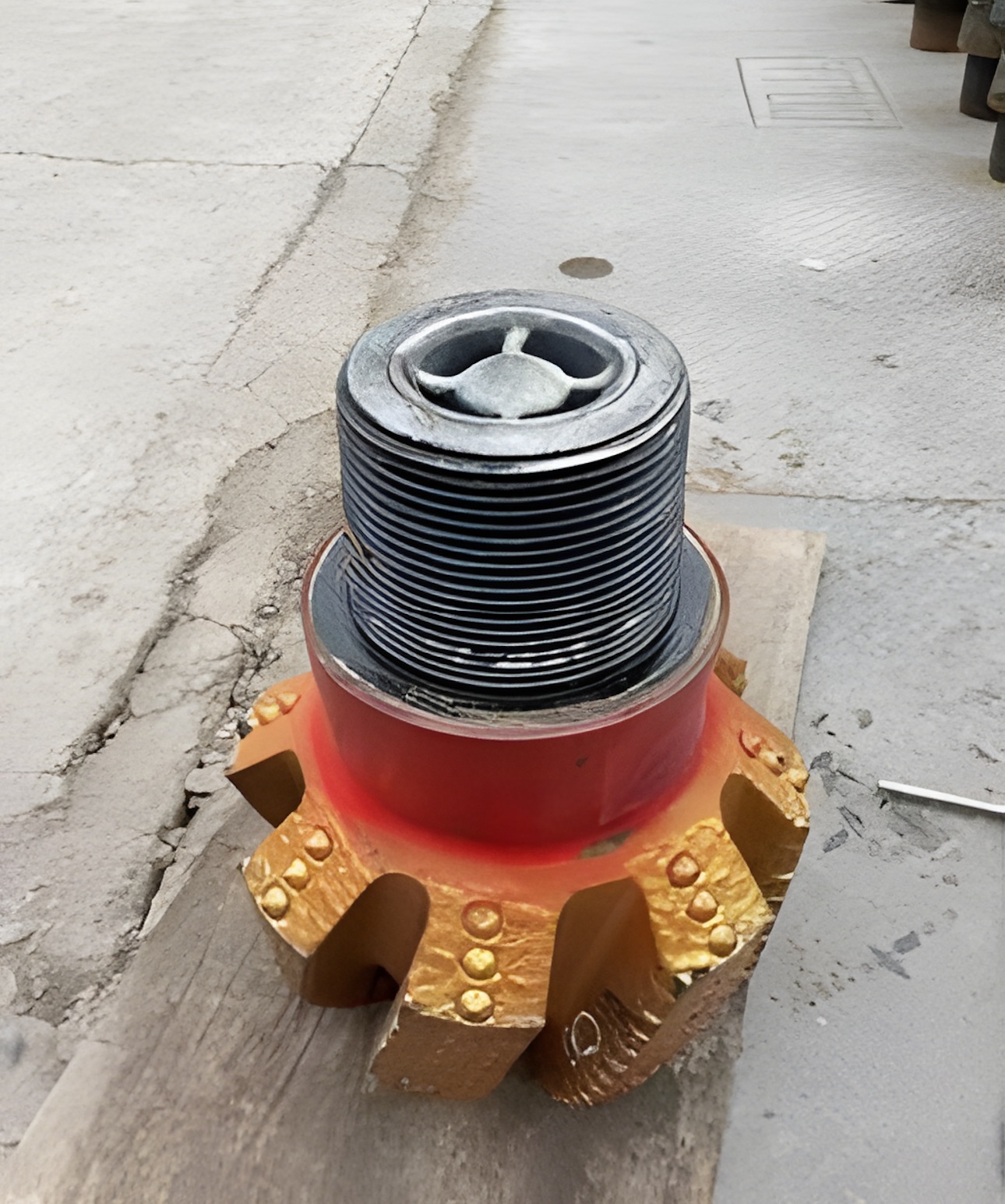

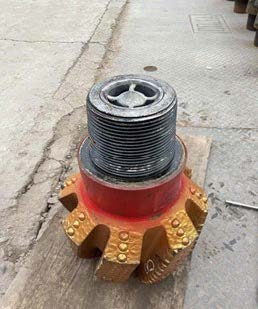

The Intelligent Drill Bit incorporates sensors and microchips within its internal flow path without compromising hydraulic or mechanical performance. The first-generation UltraSense™ Bit captures real-time data on temperature, 3-axis shock and vibration, and rotational dynamics directly at the source—parameters undetectable by surface sensors.
Key Features
- High-Frequency Sensing: Data acquisition from 1000 to 1600 Hz.
- Advanced Storage: Simultaneous recording across 16 signal channels.
- Operational Modes: Supports continuous or burst recording with auto-wake functionality.
- Easy Integration: Minimal modification required; compatible with any bit size.
- Risk-Free: Negligible pressure drop and no added drilling risk.
Applications & Benefits
- Digitalization: Foundational capability for automated drilling systems.
- Dysfunction Detection: Identifies whirl, stick-slip, and complex vibrations.
- Optimization: Accelerates the drill bit design and iteration cycle.
- No Extra Tools: Measures at the bit without requiring an additional sub.
Operational Specifications
| Parameters | US-I | US-II175C | US-II200C |
|---|---|---|---|
| Max. Temperature | 311°F (155°C) | 347°F (175°C) | 419°F (215°C) |
| Max. Operating Pressure | 25,000 psi (172 MPa) | 27,000 psi (186 MPa) | 30,000 psi (207 MPa) |
| Run Time (hours) | 100 - 300 | 75 - 200 | 75 - 200 |
| Max. Sampling Rate (Hz) | 1600 | 1600 | 1600 |
| Available Bit Sizes | 8.5” – 13.2” | 9.5” – 13.2” | 9.5” – 13.2” |
| Power Supply | Battery | Battery | Battery |
Measurement Capability & Accuracy
| Measurement | US-I Range/Acc. | US-II175C Range/Acc. | US-II200C Range/Acc. |
|---|---|---|---|
| Vibration (X,Y,Z) | ± 40 g / ± 2.5% | ± 500 g / ± 10% | ± 500 g / ± 10% |
| Shock (X,Y,Z) | ± 200 g / ± 5% | ± 500 g / ± 10% | ± 500 g / ± 10% |
| Gyro RPM (Axis) | ± 666 rpm (X,Y,Z) / ± 1% | ± 882 rpm (X) / ± 5% | ± 882 rpm (X) / ± 5% |
| Temperature | 0–311°F / ± 3% | 0–365°F / ± 5% | 0–419°F / ± 5% |
